Transformer Full Load Current and Turns Ratio Calculator

CalcTree
July 6, 2023

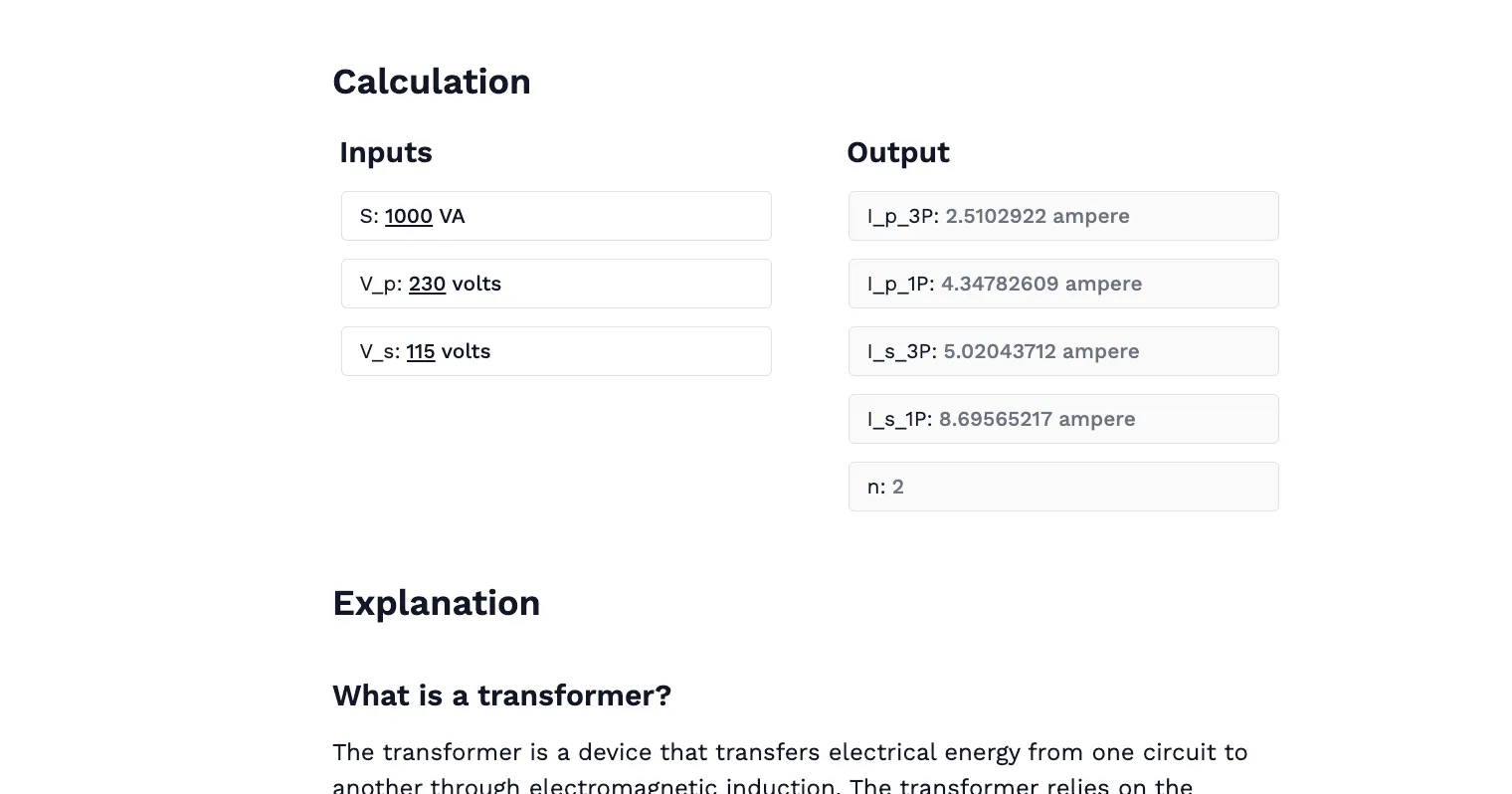

This online tool helps you calculate the primary and secondary current of a single or three-phase transformer, as well as the turns ratio. The key parameters needed for the calculation are: phase (single or three-phase), transformer power rating (VA, kVA, MVA), primary voltage (Vp), and secondary voltage (Vs).

CalcTree
July 6, 2023
Request this template

This template is not available yet! You can sign up and create it yourself!

Or let us know if you'd like it prioritized, and be notified when it’s ready:

Required
Thank you!

Your request has been received. We will let you know when it is available.

Sign up

Oops! Something went wrong while submitting the form.

Related templates

About this calculator

The Transformer Full Load Current and Turns Ratio Calculator is a tool designed to help you quickly determine the primary and secondary current of a single or three-phase transformer, as well as its turns ratio. The calculation requires key parameters such as the phase (single or three-phase), transformer power rating (VA, kVA, MVA), primary voltage (Vp), and secondary voltage (Vs). This tool simplifies the process, making it easy to evaluate transformer performance for different configurations.

This calculator is for:

  • Electrical engineers who need to design or verify transformer specifications.
  • Technicians responsible for transformer installation and maintenance.
  • Students studying electrical power systems who want practical examples of transformer calculations.

The tool allows for quick feasibility checks by comparing power ratings, voltages, and phases to assess whether a transformer can handle specific loads. It can be used to estimate the correct turns ratio for voltage transformation. Alternative methods to perform this calculation can be found in textbooks like Electrical Power Systems by C.L. Wadhwa or Principles of Electric Machines and Power Electronics by P.C. Sen, which cover transformer theory and design in greater detail.

Explore the wide range of resources available
200+

Engineering templates

50+

Common calculators

20+

Design guides

FAQs

What is the significance of the turns ratio in a transformer?

The turns ratio determines the relationship between the primary and secondary voltage in a transformer. It directly affects how the transformer steps voltage up or down, depending on the number of turns in the primary and secondary windings.

How does transformer power rating affect current?

The power rating (in VA, kVA, or MVA) indicates the maximum load the transformer can handle without overheating. Higher power ratings generally correspond to higher current on both the primary and secondary sides, depending on the voltage levels.

What are the key differences between single-phase and three-phase transformers?

Single-phase transformers are used for residential or smaller loads, while three-phase transformers are typically used for industrial applications due to their higher efficiency and ability to carry more power.

Related templates

How to verify a calculation

Engineering calculations require clarity, precision, and professionalism. Here are some best practices we use at CalcTree:

  • Technical Requirements: Start with boundary conditions, units, sign conventions, and design standards.
  • Check the Math: Review the calculation step-by-step. Clarify unusual steps, compare results with hand calculations or tools, and test with multiple examples.
  • Peer Review: Have an independent reviewer check for logic, accuracy, and compliance.

For more on verification, see CalcTree’s internal methods.
